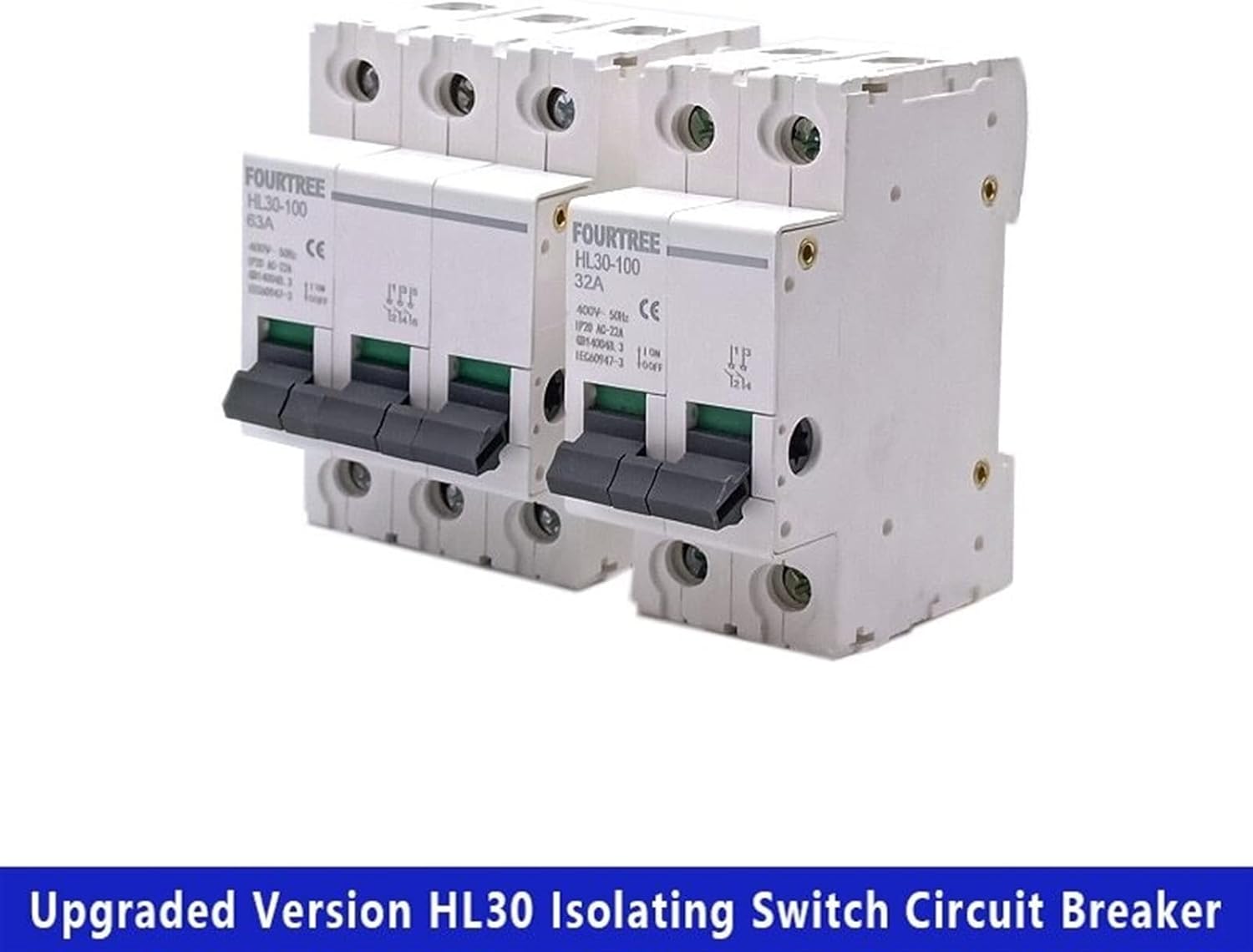

1Pcs Main Switch HL30 Isolating Circuit Breaker Household Function Disconnector Isolator 2P 32A 63A 100A (Size : 2 Pole, Color : 63A)(80a)

Micro SwitchIndustrial Switches / Toggle SwitchesNote:The product shell is pure white, due to the light of the photo, the color of the picture is not pure white!HL30-100 series isolating switch is applicable to the power distribution and control circuit with an alternating current of 50HZ/60HZ, rated voltage of 230/400V, and rated current up to 100A as master switch of terminal electrical equipment. It can be used to control various motors, small power electric appliance and illumination etc, It is widely used for industrial and mining enterprises, high buildings, commercial places, home and so on,The produce meets the standards of IEC60947.3Product category3.1 Rate current in: 32A, 63A, 100A3.2 Number of poles: Single pole, Two poles, Three poles, Four polesMain specifications4.1Rated short-time withstand current: 12In, electrifying time 1s4.2 Rated short-time making capacity: 20In, electrifying time 0.1s4.3 Rated making and break capacity: 1.05Ue, 3In, cos=0.654.4 Rated limited short-circuit current:20KA4.5 Operatingperformance: No load 8500 times, On load 1500 times, 10000 in total,cos=0.8,Operating frequency is 120 times/hour.
