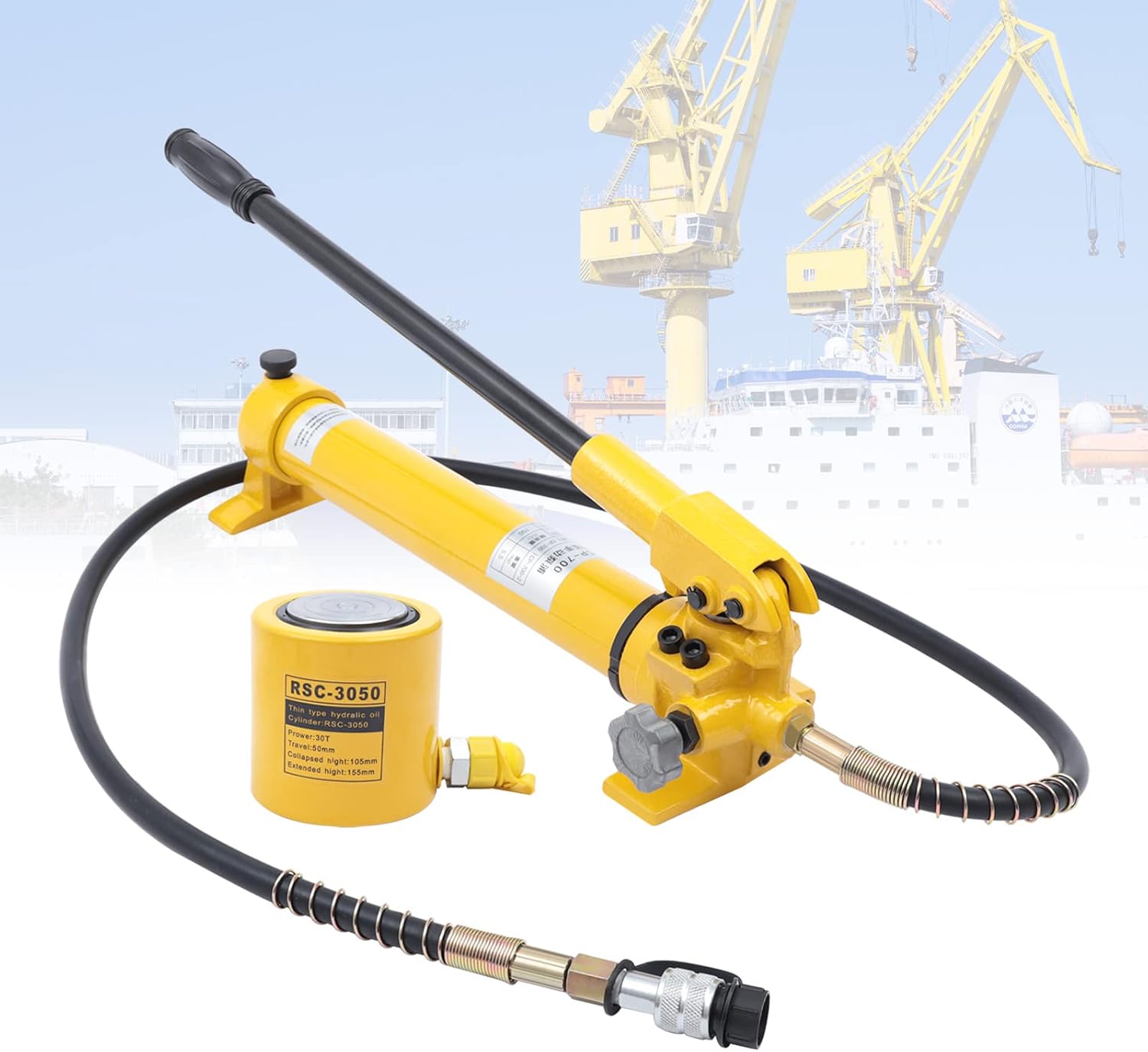

30 ton Hydraulic Ram Jack + CP-700 Hydraulic Hand Pump Mini Protable Industrial Hydraulic Cylinder Low Profile Porta Power Kit

DescriptionThis hydraulic jack is made of high-quality steel and rubber, which is strong, durable, and not easy to deform. It has a tonnage of 30T/66138lbs, which is large enough to meet your work needs. You can press the pump handle to jack up heavier items easily, so it is very labor-saving and convenient to use.SpecificationColor: Black, Yellow, SilverMaterial: Steel Quick Coupling Type (Thread): ZG3/8Fuel Hose Material: RubberGross Weight: 16.5kg/36.3lbsPackage Size: 64*19*18.5cm/25.1*7.4*7.2inchJack Model: RSC-3050Tonnage: 30T/66138lbsTravel(Adjustable Height): 50mm/1.9inchJack Height: 105mm/4.1inchJack Extended Height: 155mm/6.1inchJack Diameter: 104mm/4.09inchOil Storage Capacity: 210CCJack Weight: 5.5kg/12.1lbsPump Model: CP-700Oil Storage Capacity: 700CCPump Max. Pressure: 70MPaPump Min. Pressure: 7MPaPump Weight: 10.5kg/23.1lbsHow to Use 1. First, connect the quick connector of the manual pump to the jack.2. Select the position and tighten the hydraulic pump drain screw clockwise.3. Press the handle up and down.4. When you can see the coil on the spindle, stop pressing.5. Loosen the hydraulic pump oil drain screw counterclockwise.Package Included1* Hydraulic Jack1* PumpNotes1. Please keep the load bearing surface hard and flat and do not exceed the tonnage and rated strok, otherwise, the cylinder will be damaged.2. It is only applicable to railroad vehicle maintenance, machinery installation, construction project support, etc., not applicable to household cars.3. The package does not include hydraulic oil, please buy it locally by yourself. Thank you for your understanding.4. Please stop immediately when you see the stop line.5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

• Durable Material - This Hydraulic Ram Jack is made of high-quality steel and rubber, which is strong, durable, and not easy to deform. Good materials can extend its service life.
• Quick Coupling - The quick coupling adopts threaded ZG3/8, which is equipped with a steel ball to prevent oil leakage, making it safer to use. The stop ring can play a protective role for the jack to prevent breakage and damage when it is under load, making it safer to use.
• Easy to Install - This Low Profile Power Kit is simple in structure and fully packaged. You need to connect the jack and pump to use, which is very simple and can save a lot of time and effort.
• Wide Application - It has a tonnage of 30T/66138lbs, which is suitable for shipyards, bridges, large machines. It is often used in power, chemical, steel, bridges, and other industries. It is suitable for railway vehicle maintenance, mechanical installation, construction engineering support, etc.
• Easy to Use - You just need to press the handle up and down to jack up heavier items, so it is very labor-saving and convenient to use.
