Vehicle Loop Detector, PD132 Single Channel Inductive Vehicle Loop Sensor with Selectable Pulse Time, Loop Vehicle Sensor Detector for Safety Exit Gates and Traffic Control

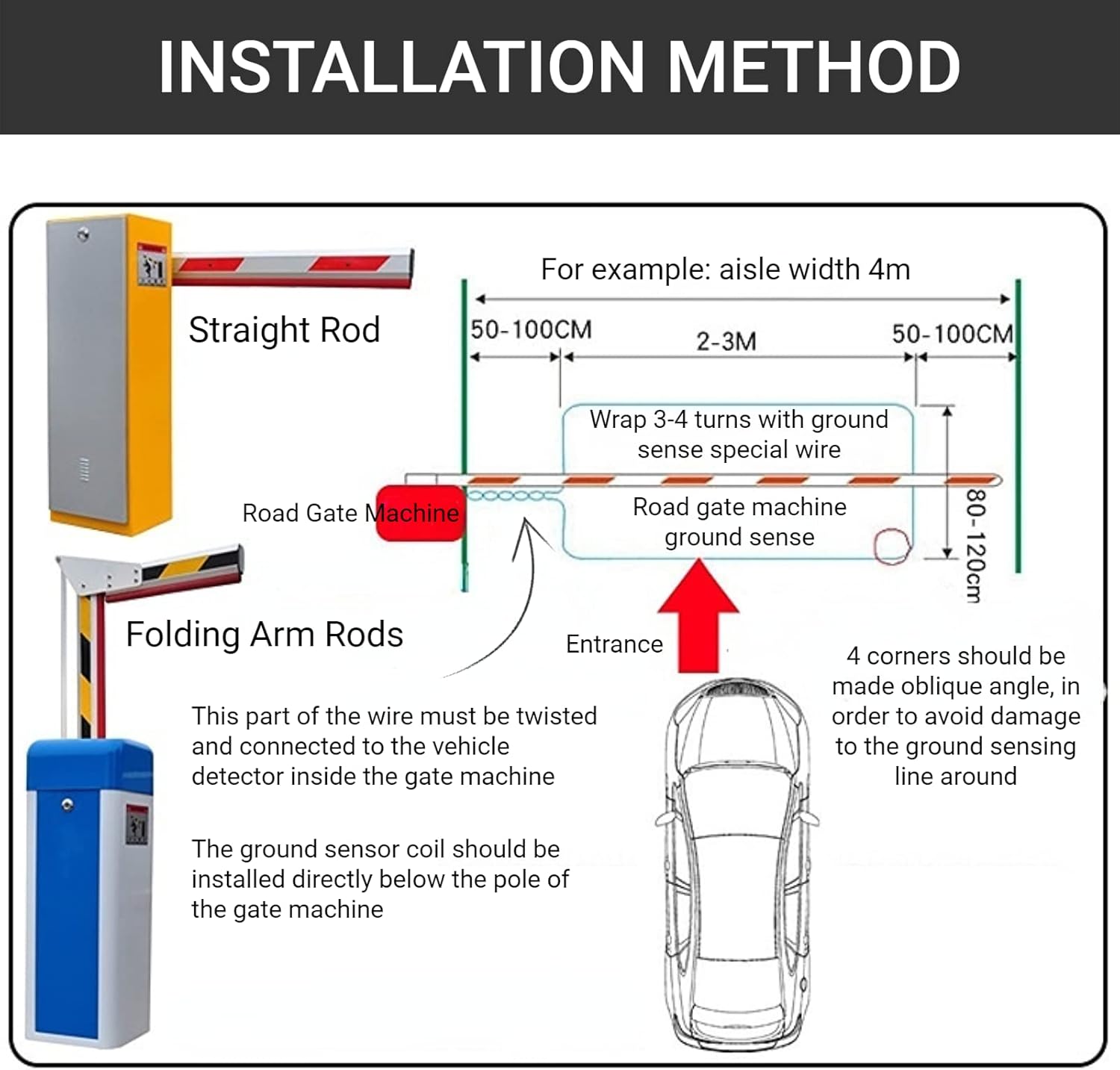

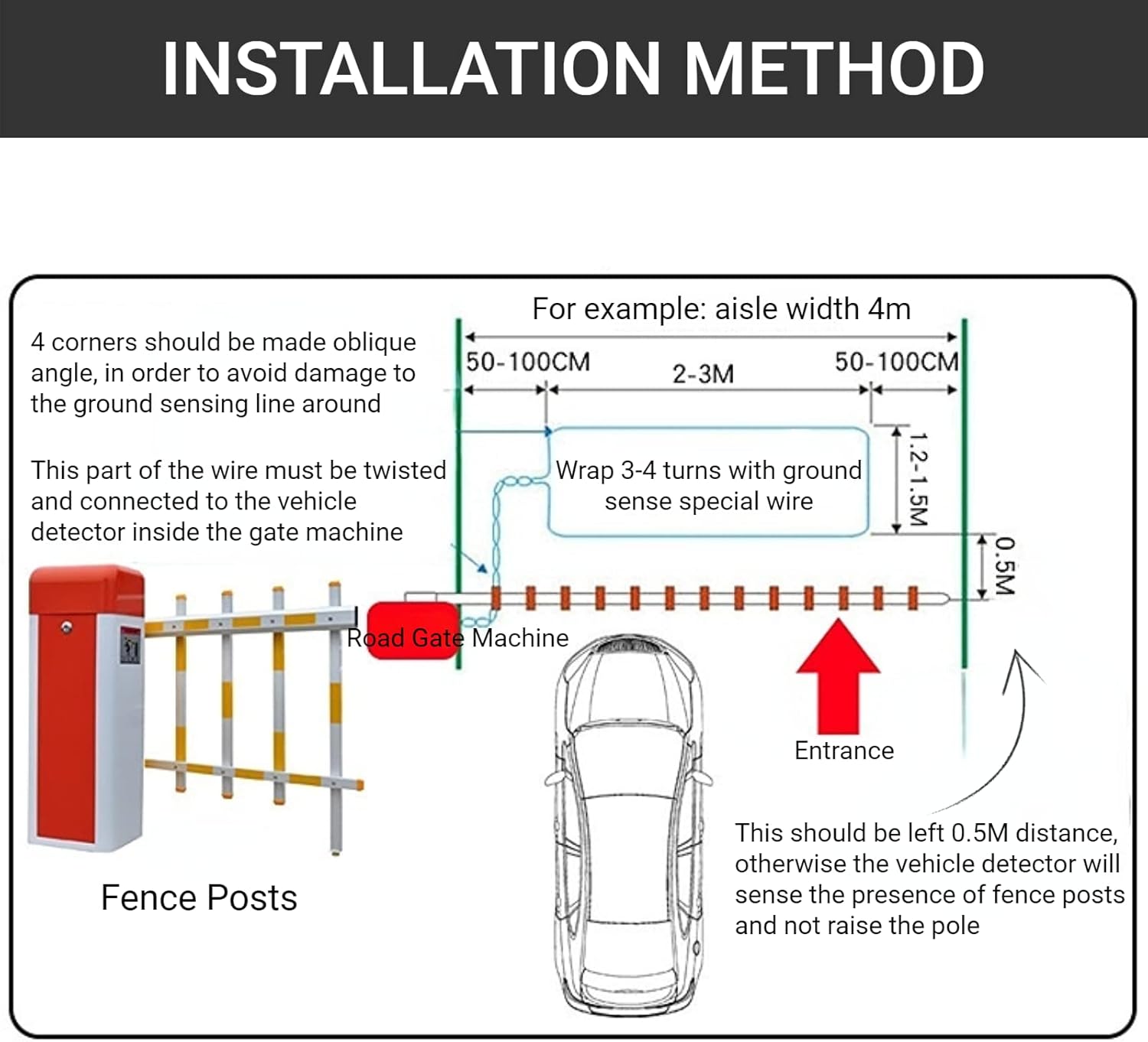

specifications: Supply voltage 220VAC Power 4.5VA Output relays 240V/5A Operating temperature -20~65°C Storage temperature -40~85°C Frequency range 20 kHz to 170 kHz Temperature compensation 50°C/ h Reaction time 10ms Signal holding time Unlimited/limited Sensitivity Higher:0.02% high:0.05% low:0.1% lower:0.5% Loop inductance Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH Loop connection wiring 200 meters long. The total resistance is less than 80hm, twisted at least 20 times per meter Relative humidity <90%No condensation Weight 283g Package included: 1 x Vehicle Loop Detector 1 x manual

• PARAMETERS: Supply Voltage: 220VAC; Power: 4.5VA; Output Relays: 240V/5A; Frequency Range: 20 kHz to 170 kHz; Temperature Compensation: 50°C/ h; Reaction Time: 10ms; Sensitivity: Higher: 0.02%, High: 0.05%, Low: 0.1%, Lower: 0.5%.
• RESET SWITCH: The reset switch of this loop vehicle sensor enables the detector to be manually reset during commissioning and testing. This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection.

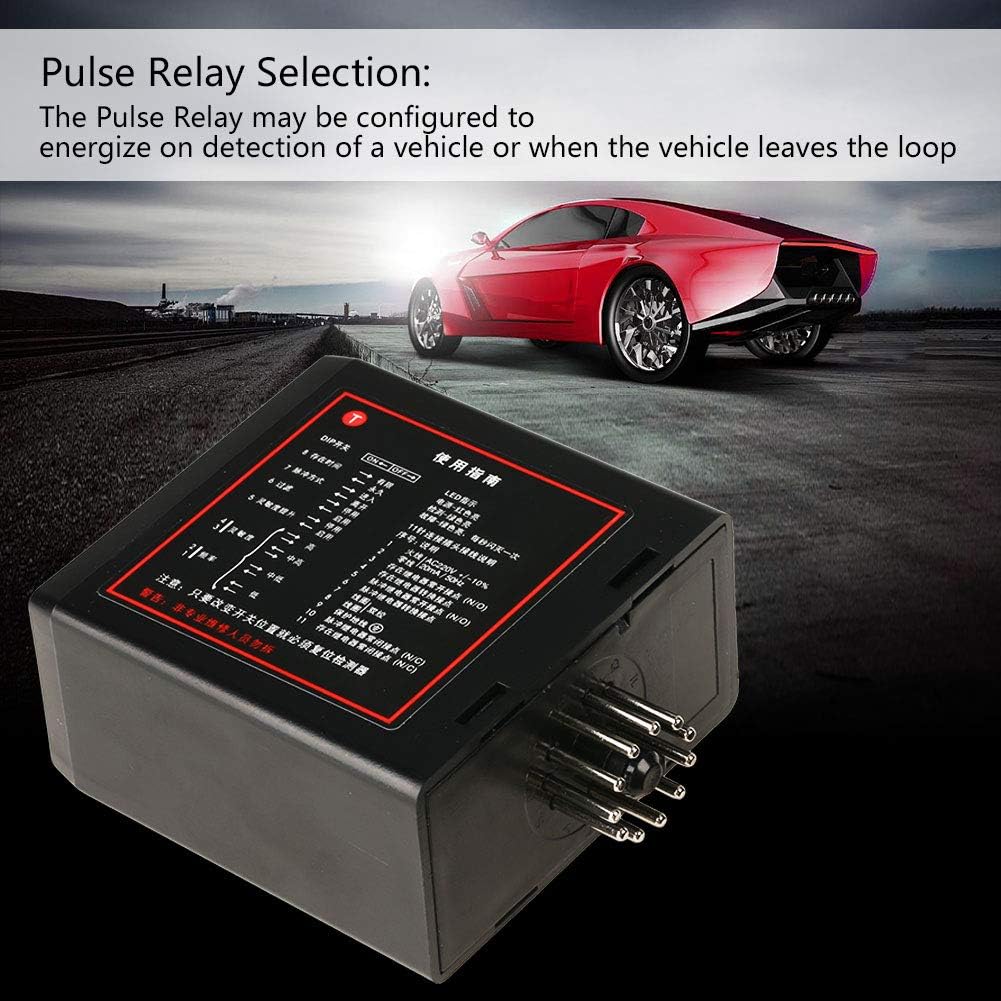

• SELECTABLE PULSE TIME: This feature sets the length of time that the pulse relay will be energized for 1 Second or 0.5 Seconds. The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop.

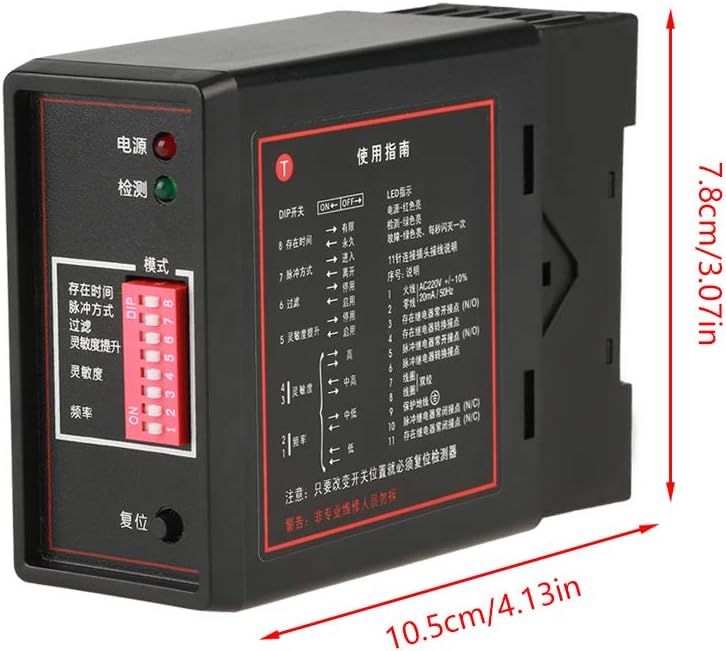

• SENSITIVITY SET: This feature sets the undetected level to maximum sensitivity and is used to prevent loss of detection of high-bed vehicles.4 sensitivity setting are available on the switches to allow flexibility in configuration.
• MAINLY USED FOR: The Vehicle Loop Detector is mainly used to detect the existence and passing of vehicles.which could be used for car parking lot, gate, traffic control. Except the premium product we provide, we also provide considerate after sale service. Please contact us for any problem about our product.
